Geothermal comfort in an outdoor package.

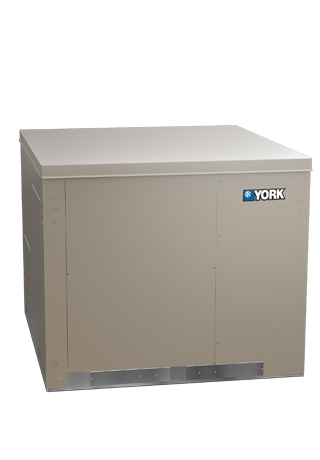

The York® Affinity™ YAP is a complete outdoor packaged system that provides quiet and efficient heating and cooling for the entire home. Its advanced components and features offer a level of comfort and savings that’s far greater than any ordinary system – at industry-leading efficiencies.
Efficiency
Geothermal heat pumps are much more efficient than traditional heating and cooling systems. The York® Affinity™ YAP is rated with an amazing 27.6 EER and 4.6 COP, which makes it one of the most efficient dual stage units on the market. Efficiency translates into savings.
All-in-One
One York® geothermal heat pump will provide
heating and cooling for your entire home. A variety of sizes and configurations
are available, so no matter your home or climate,
a geothermal heat pump will work for you.
Cost effective
Geothermal heat pumps are so efficient that any
added cost over traditional equipment is usually
recovered in just a few years. And because they
have a lifespan of 20-25 years, your investment
will last longer and your return on investment will
grow year by year.
Environmentally responsible
Since our units don't burn expensive, polluting
fossil fuels, they're the most environmentally
responsible options available today. Replacing a
furnace and/or air conditioner with geothermal
can minimize acid rain threats, air pollution, and
the greenhouse effect.
Safe
No combustion or flames are used to operate a
geothermal heat pump, making it a safe choice
for your home and family. Our systems merely
move heat to and from the ground rather than
by burning natural gas, propane, or oil.
Affordable peace of mind
York® Affinity™ YAP units come with warranties
up to 10 years for parts and labor allowances.
Other options are available, so see your York®
Contractor for details.
Dual capacity compressor
For superb efficiency
and reliability dual capacity units
utilize Scroll UltraTech™ compressors.
All compressors are double isolation
mounted for extra quiet operation.
Controls
Powerful Aurora controls
offer two-way communication
between components, industry leading
operating logic, and
thorough troubleshooting capabilities.
An expansion board adds true
energy monitoring as well as
compatibility with our IntelliZone2
zoning system.
Blower motor
A variable speed
ECM motor runs at only the speed
needed for maximum efficiency
and savings.
Internal Loop Pumps
The flow
center is conveniently mounted within
the cabinet, eliminating the need
for any indoor loop piping. The
loop pipes enter the unit through
an opening in the bottom panel.
Aluminum Air Coil
YAP units feature aluminum air coils for
durability and extended system
life. Formicary corrosion is now
a thing of the past.
Cabinet
The cabinet comes standard with a professional grade
finish for long-lasting beauty and
protection. The system is fully
insulated for quiet operation with
cleanable foil-backed insulation
and is available in five dual
capacity sizes (2-6 ton).
ThermaShield™
Our exclusive coaxial heat exchanger coating
protects against condensation
for temperatures below 50°F,
extending its life.
IntelliStart
This optional soft starter
reduces start-up amperage by up to
60% of normal draw to reduce noise,
eliminate light flicker, and increase
compressor life.
R-410A
All York® geothermal units utilize R-410A refrigerant, which is friendly to the environment.
Compressor
Dual Capacity Compressor
Coil
All-aluminum
Fan Motor
ECM Blower Motor
Controls
Aurora Controls
Hot Water Generation
N/A
Refrigerant
R-410A
Filter
N/A
Warranty
Up to 10-Year Parts and Labor Allowance
Capacity
2-6 ton
Efficiency Rating
27.6 EER / 4.6 COP
Energy Star
Yes
